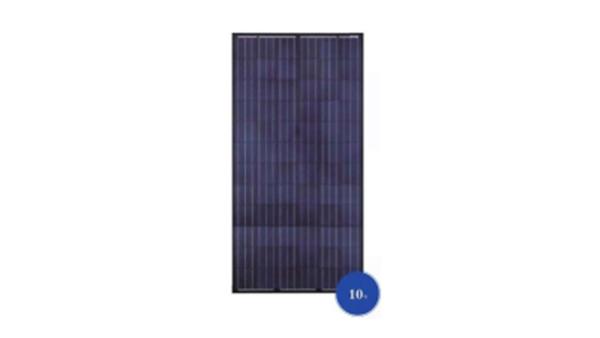

300W~330W Black Polycrystalline Solar Panel
Electrical Properties of Polycrystalline Module (STC)
| Model |
RSM72-6-300M |
RSM72-6-305M |
RSM72-6-310M |
RSM72-6-315M |
| Max. power (W) |
300W |
305W |
310W |
315W |
| Max. power tolerance (%) |
0~+3% |
0~+3% |
0~+3% |
0~+3% |
| Max. voltage (V) |
35.90 |
36.20 |
36.40 |
36.60 |
| Max. current (A) |
8.36 |
8.43 |
8.52 |
8.61 |
| Open circuit voltage (V) |
44.90 |
44.92 |
44.94 |
44.96 |
| Short circuit current (A) |
8.85 |
8.95 |
9.15 |
9.25 |
| Conversion efficiency |
＞15.46% |
＞15.72% |
＞15.98% |
＞16.24% |
| Model |
RSM72-6-320M |
RSM72-6-325M |
RSM72-6-330M |
| Max. power (W) |
320W |
325W |
330W |
| Max. power tolerance (%) |
0~+3% |
0~+3% |
0~+3% |
| Max. voltage (V) |
36.80 |
36.90 |
37.20 |
| Max. current (A) |
8.7 |
8.81 |
8.87 |
| Open circuit voltage (V) |
45.02 |
45.06 |
45.10 |
| Short circuit current (A) |
9.34 |
9.46 |
9.58 |
| Conversion efficiency |
＞16.49% |
＞16.75% |
＞17.00% |
Temperature Coefficients
| NOCT |
45℃±2℃ |
| Temperature coefficient of open circuit voltage (ß) |
-0.32%/℃ |
| Temperature coefficient of short circuit current (ɑ) |
+0.034%/℃ |
| Temperature coefficient of power |
-0.40%/℃ |
Working Conditions
| Max. system voltage |
1000 VDC |
| Working temperature range |
-40℃~+85℃ |
| Max. load capacity |
5400pa IEC61215 |
| Max. dia. |
25mm |
| impact speed |
23m/s |
Specifications
| Solar cells |
Polycrystalline, 156×156mm(6×12), 3BB/4BB |
| Junction box |
IP67,3 diodes |
| Tempered glass |
4.0mm |
| Connecting wire/ connector |
MC4 compatible /4mm2, 900mm long |

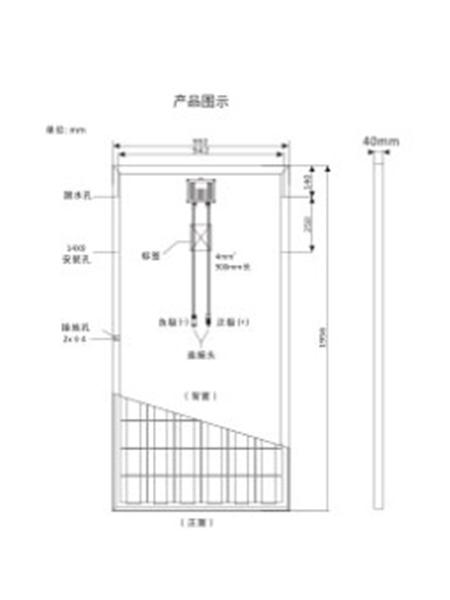

| Dimensions of aluminum frame |
1956×992×40mm |
| Weight |
25KG |
Packaging
| Vehicle type |
17.5 m transport truck |
| Module thickness |
40mm |
| Pieces/ case |
23 |
| Pieces |
1168 |
