Model	RSM60-6-250M	RSM60-6-255M	RSM60-6-260M
Max. power (W)	250W	255W	260W
Max. power tolerance (%)	0~+3%	0~+3%	0~+3%
Max. voltage (V)	30.30	30.40	30.60
Max. current (A)	8.26	8.39	8.50
Open circuit voltage (V)	37.5	37.70	37.90
Short circuit current (A)	8.90	9.05	9.12
Conversion efficiency	＞15.27%	＞15.58%	＞15.88%

Model	RSM60-6-265M	RSM60-6-270M	RSM60-6-275M
Max. power (W)	265W	270W	275W
Max. power tolerance (%)	0~+3%	0~+3%	0~+3%
Max. voltage (V)	30.70	30.80	30.90
Max. current (A)	8.63	8.77	8.90
Open circuit voltage (V)	38.20	38.40	38.60
Short circuit current (A)	9.14	9.26	9.38
Conversion efficiency	＞16.19%	＞16.50%	＞16.80%

NOCT	45℃±2℃
Temperature coefficient of open circuit voltage (ß)	-0.33%/℃
Temperature coefficient of short circuit current (ɑ)	+0.03%/℃
Temperature coefficient of power	-0.41%/℃

Max. system voltage	1000VDC
Working temperature range	-40℃~+85℃
Max. load capacity	5400pa IEC61215
Shock resistant capacity	Max. dia. 25mm, impact speed 23m/s

Solar cells	Monocrystalline, 156×156mm(6×10),3BB/4BB
Junction box	IP67, 3 diodes
Tempered glass	3.2mm
Connecting wire/ connector	MC4 compatible /4mm2, 900mm long

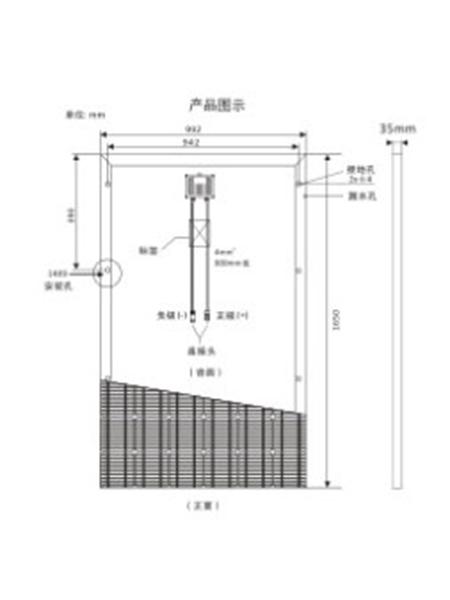

Dimensions of aluminum frame	1650×992×35mm
Weight	20.0KG

Vehicle type	13m transport truck	17.5m transport truck
Module thickness	35mm	35mm
Pieces/ case	26	26
Pieces	812	1560
