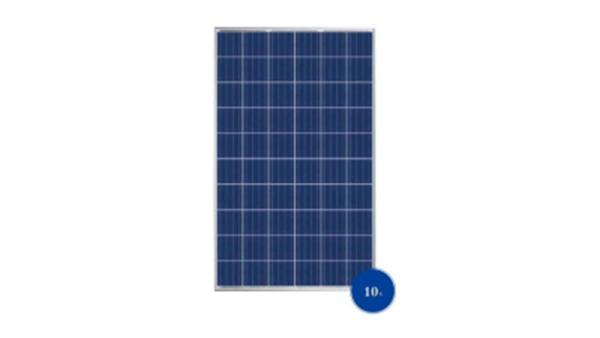

255W~275W High Efficiency Polycrystalline Solar Panel

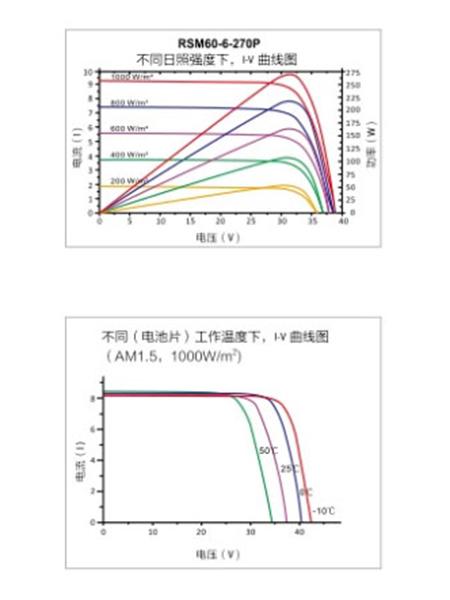

Electrical Properties of Polycrystalline Module (STC)
Model RSM60-6-255P RSM60-6-260P RSM60-6-265P RSM60-6-270P RSM60-6-275P
Max. power (W) 255 260 265 270 275
Max. power tolerance (%) 0~+3% 0~+3% 0~+3% 0~+3% 0~+3%
Max. voltage (V) 30.30 30.60 30.90 31.20 31.50
Max. current (A) 8.42 8.50 8.58 8.66 8.74
Open circuit voltage (V) 37.60 37.80 38.00 38.20 38.40
Short circuit current (A) 8.96 9.04 9.12 9.20 9.28
Conversion efficiency >15.60% >15.90% >16.20% >16.50% >16.80%
Electrical Properties of Polycrystalline Module (NOCT)
Model RSM60-6-255P RSM60-6-260P RSM60-6-265P RSM60-6-270P RSM60-6-275P
Max. power (W) 190W 194W 197W 201W 205W
Max. power tolerance (%) 0~+3% 0~+3% 0~+3% 0~+3% 0~+3%
Max. voltage (V) 28.00 28.10 28.30 28.40 28.60
Max. current (A) 6.79 6.89 6.98 7.08 7.18
Open circuit voltage (V) 35.00 35.20 35.30 35.50 35.70
Short circuit current (A) 7.25 7.31 7.38 7.44 7.50
Temperature Coefficients
NOCT 45℃±2℃
Temperature coefficient of open circuit voltage (ß) -0.32%/℃
Temperature coefficient of short circuit current (ɑ) +0.05%/℃
Temperature coefficient of power -0.39%/℃
Working Conditions
Max. system voltage 1000VDC
Working temperature range -40℃~+85℃
Max. load capacity 5400pa IEC61215
Shock resistant capacity Max. dia. 25mm, impact speed 23m/s
Specifications
Solar cells Polycrystalline, 156×156mm (6×10), 4BB
Junction box IP67, 3 diodes
Tempered glass 3.2mm
Connecting wire/ connector MC4 compatible/ 4mm2, 900mm long

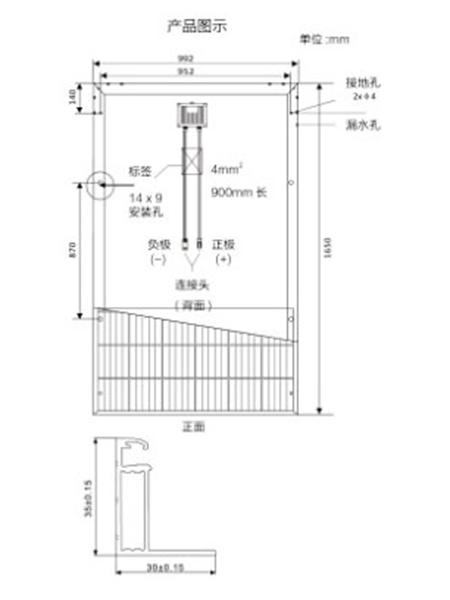

Dimensions of aluminum frame 1650mm×992mm×35mm
Weight 18.0KG
Packaging
Vehicle type 17.5m transport truck
Module thickness 35mm
Pieces/ case 30
Pieces 1500
