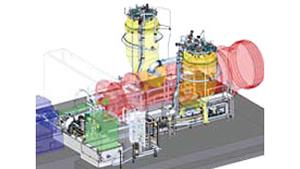

F-Class AE94.3A Gas Turbine

Gas turbines have the advantages of high efficiency and high power, small size, low investment and operating cost, long service life, etc. The gas turbines are mainly applied to the fields of power generation, transportation and industrial production. Gas turbines include lightweight gas turbines and heavy-duty gas turbines. Lightweight gas turbines are aero-engine type, advantages of which include quick installation, small size, quick startup and high cycle efficiency. It is mainly used for power peak regulation and sea vessel power generation. Heavy-duty gas turbines are industrial gas turbines, advantages of which include reliable operation, high exhaust gas temperature and high combined cycle efficiency. It is mainly used for combined cycle power generation and cogeneration.

F-Class AE94.3A Gas Turbine
Pressure ratio: 20.0
GT thrust force (MW): 310
GT efficiency (%): 40.0
CCPP thrust force (MW): 456
CCPP efficiency (%): 59.0

Performance Parameter
Gas Turbine Power Output 185 MW
Gas Turbine Effciency 36.2%
NOx Emission ≤30 mg/Nm3
Fuel Gas Consumption 14.4 Nm3/s
Steam Consumption Rate 5.1 kWh/Nm3
Turbine Exhaust Temperature 541°C
Exhaust Gas Mass Flow 555kg/s
Weight 186.1t
*ISO-Ambient condition without inlet and exhaust pressure losses
