Marathon Generator

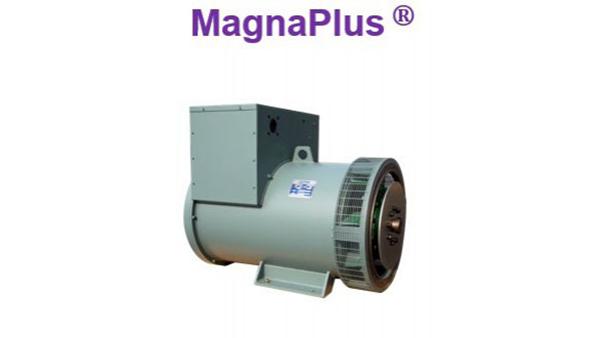

MagnaPlus Series Generators

• 5 to 500 kW (50Hz)
• 5 to 600 kW (60Hz)
• Frame: 280, 360, 400, 430, 500
• 190 to 690 V
• 4 or 12 lead designs
• Top mounted conduit box
• Linkboard
• Bolt on PMG / DVR2000E or AVR
• Diesel SAE adaptions
• Single or double bearing
• Designed, manufactured and tested to NEMA standards
• Custom designs available

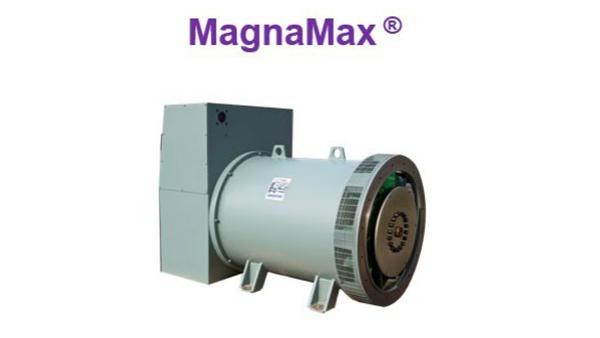

MagnaMax Series Generators

• 350 to 2500 kW (50Hz)
• 350 to 2,800 kW (60Hz)
• Frame: 570, 740, 860
• 190 to 13800V
• 4 or 12 lead and 4 Bus Bar designs
• Differential protection
• Random coil and form coil options
• VPI insulation system
• Large end mounted conduit box
• DVR2000E / PMG
• Diesel SAE adaptions
• Single or double bearing
• Designed, manufactured and tested to NEMA standards
• Custom designs available

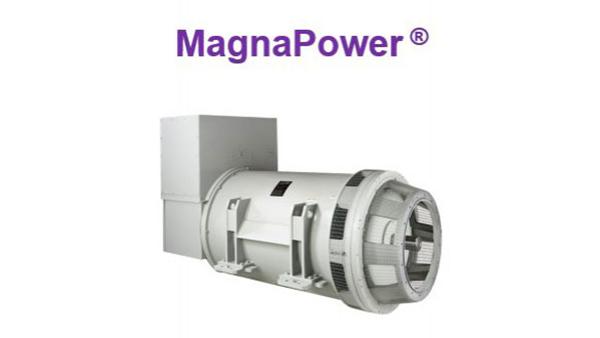

MagnaPower Series Generators

• 1600 to 2500 kW (50Hz)
• 1600 to 3000 kW (60Hz)
• Frame: 1000
• 380 to 13800V
• 4 Bus Bar
• Differential protection
• Form Coil and Random Coil
• VPI insulation system
• Large end mounted conduit box
• DVR2000E / PMG
• Diesel SAE adaption
• Single or double bearing
• Designed, manufactured and tested to NEMA standards
• Custom designs available

Shanghai Electric and Marathon Electric Co. have come together in order to establish a joint venture revolving around the design and production of an outstanding series of Marathon generators. We have combined our technical knowledge and manufacturing expertise to create these incredibly powerful and efficient fuel-powered generators.
